Infrastructure

Total Area
88,126 Sq. M
Covered Shop Area
4,950 Sq.M
Open Fabrication Yard
25,440 Sq.M

Remarkable Equipment Served

Largest Dia Equipment Shipped
6.4 M Dia C3 Splitter Column for Nayara Energy Limited, Jamnagar
Longest Equipment Shipped in Single Piece
42 M
Weight of Heaviest Equipment Fabricated
827 MT

Forming, Pressing And Welding Capacity

Lifting Capacity
60 MT
Rolling Capacity
100 mm thk.
Pressing Capacity
100 mm thk.
Welding Process
GTAW, SMAW, SAW,
FCAW, GMAW
Metallurgies
LTCS (NACE+HIC), SS
(300, 400, Duplex), LAS (Cr, Mo, Ni)
& Clad (CS & LAS with SS & Monel)

Speciality

Size of Biggest Bay
15 M X 110 M
PWHT Furnace Size
12 M X 10 M X 10 M

Advantages

Situated on State Highway-25, at a short distance from
Reliance refinery and Nayara energy refinery. It has the
largest land area and thus having ability to address need
for additional space at short notice.

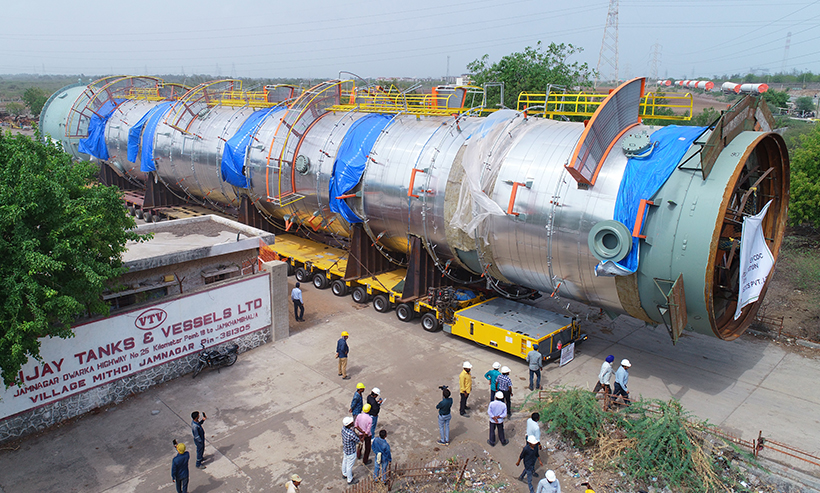

Jamnagar works

3 Nos. of Columns for Nayara
Energy, Jamnagar

Dimensions:

Dia. : 3.2 to 6.4 M x Height : 36.5 to 83.3 M

Thickness:

38 to 46 mm

Weight:

1210 MT (total)

MOC:

CS

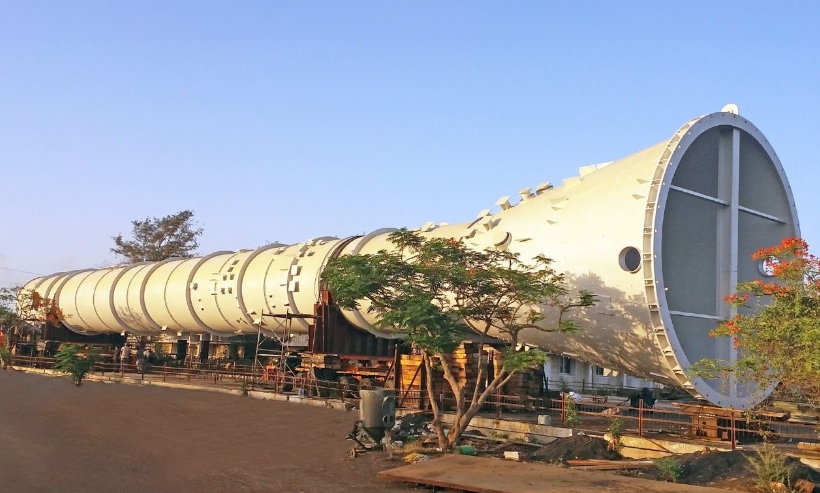

Jamnagar works
Jamnagar works

Column for Reliance Industries
Limited, Jamnagar

Dimensions:

Dia. : 3.8 M x Height : 42 M

Thickness:

40 mm

Weight:

300 MT

MOC:

CS
